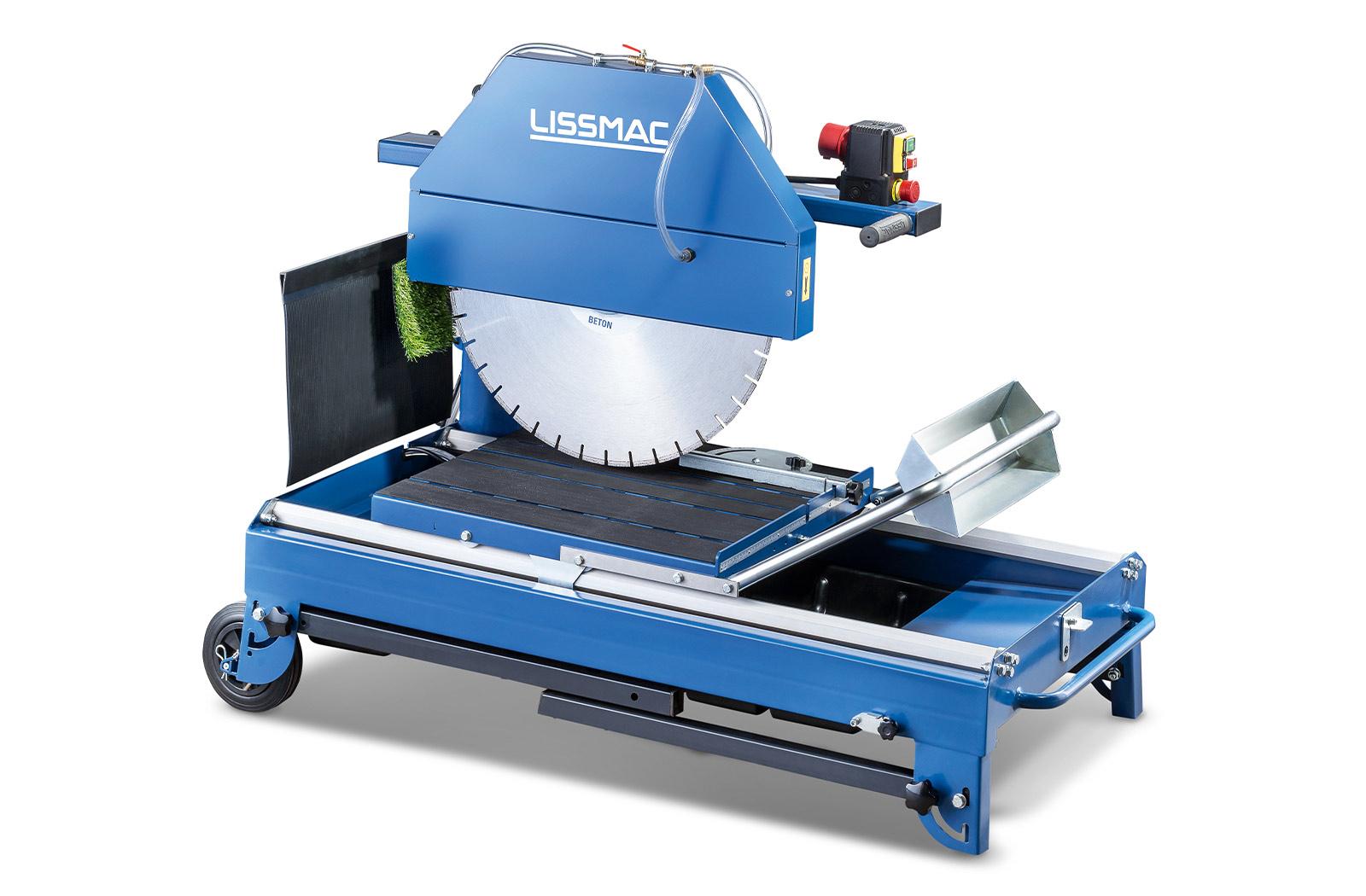

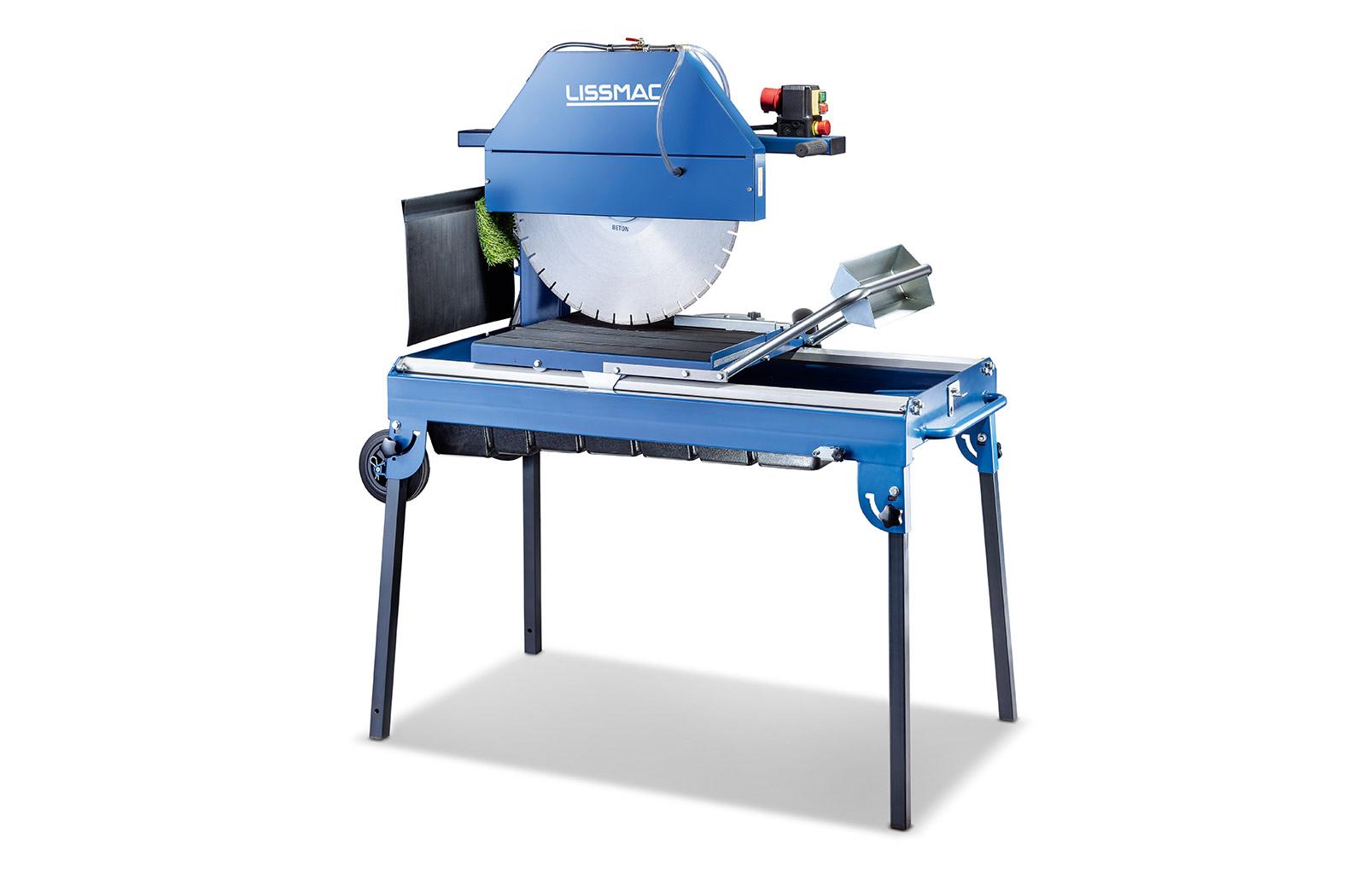

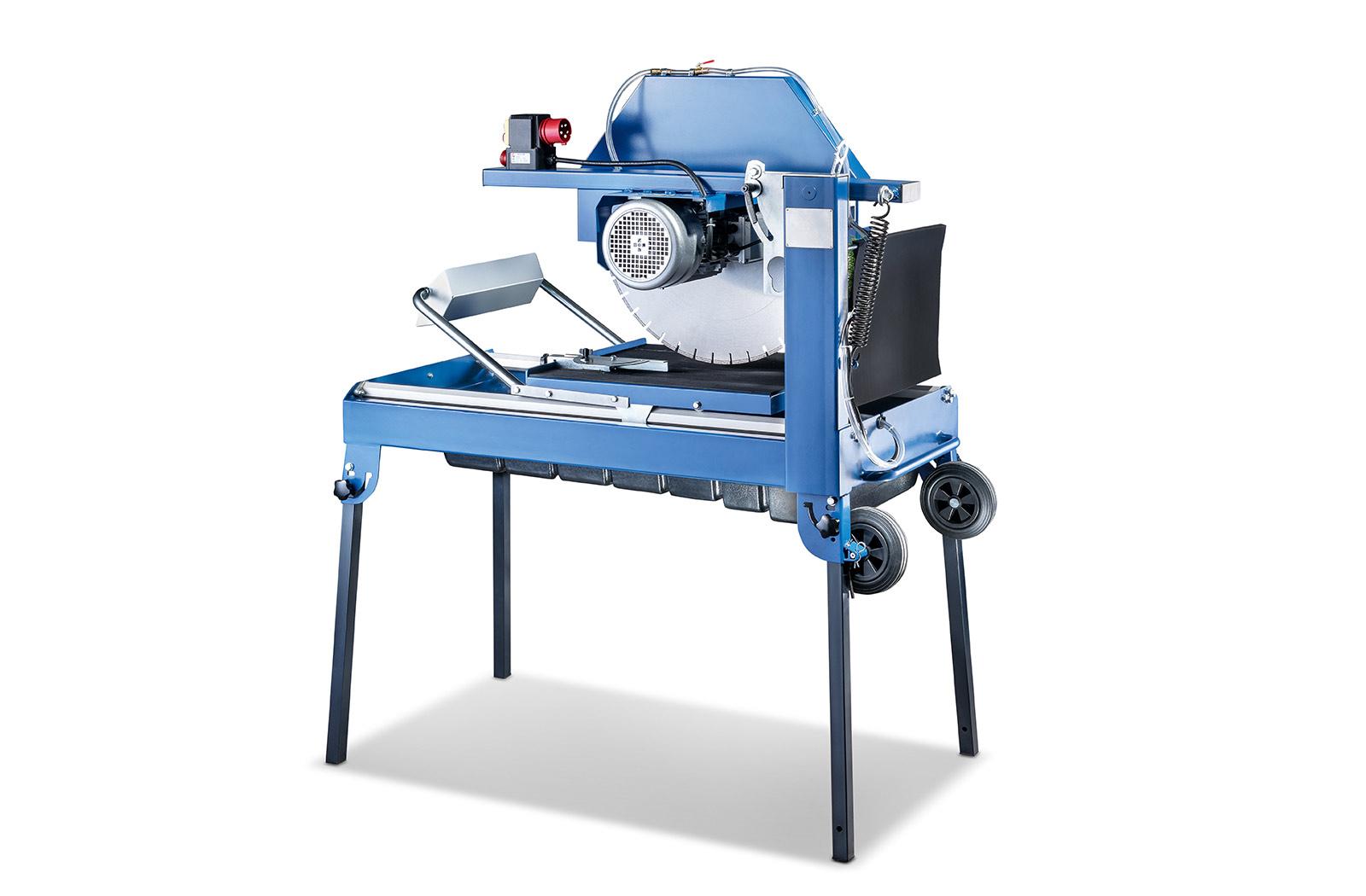

LISSMAC DTS 601

Overview

The DTS masonry saw meets all the requirements for professional, reliable and continuous use on construction sites.

Specification

cutting depth standard

 150 mm

cutting depth max.

220 mm

cutting depth setting

800 mm

saw blade max.

500 / 650 mm





Features & Benefits

  • The LISSMAC water spraying system guarantees optimum saw blade cooling and immediate removal of debris with very low water consumption and follows to the current safety regulation.
  • Table saw with stationary cutting head.
  • Welded steel frame and plastic water basin with precise table support for accurate cuts.
  • Adjustable saw head enables chop cuts.

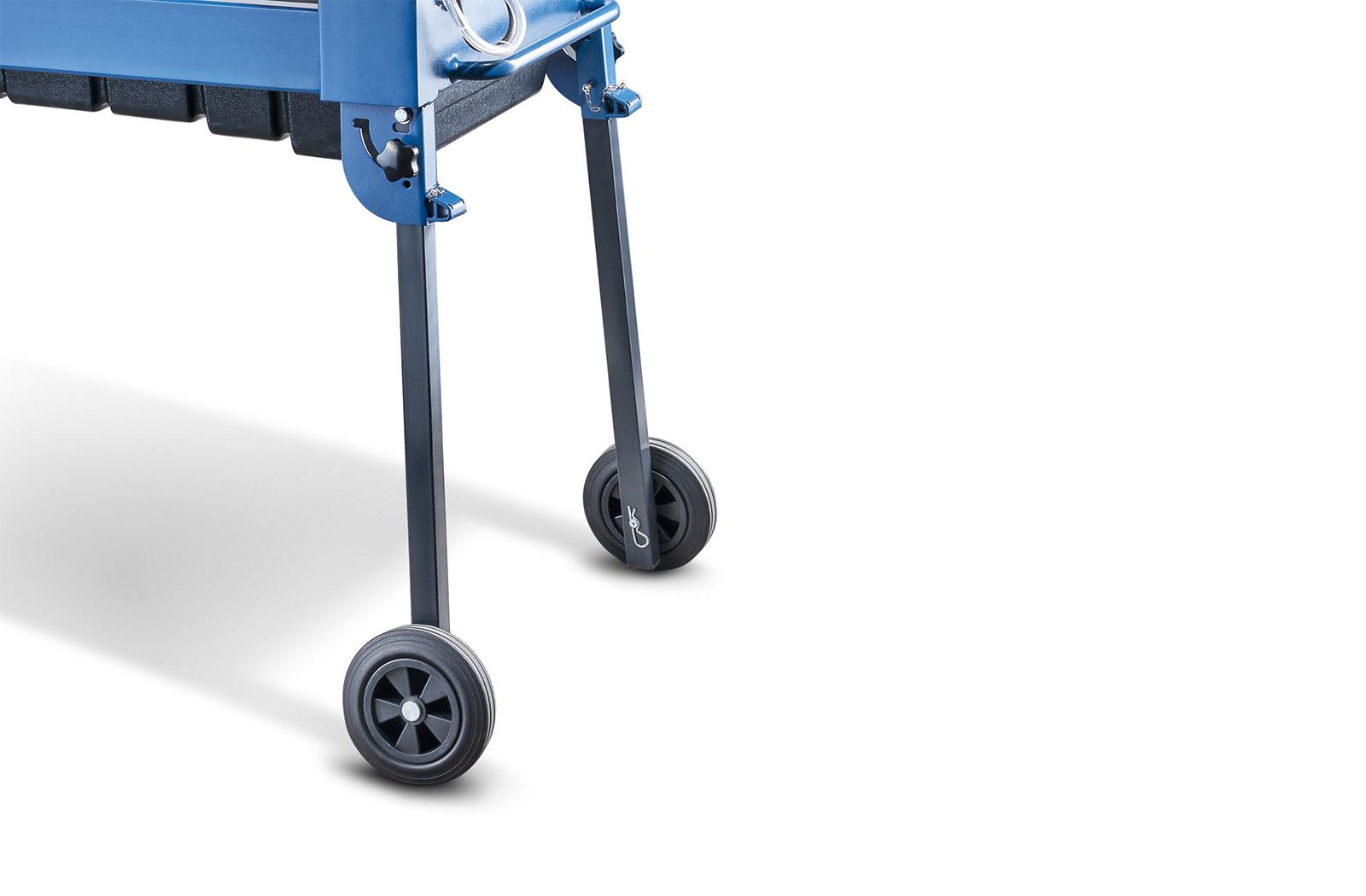

  • Foldable legs for quick and compact transport.
  • Roller table equipped with safety catch and locking mechanism.
  • Integrated water pump transport lock.

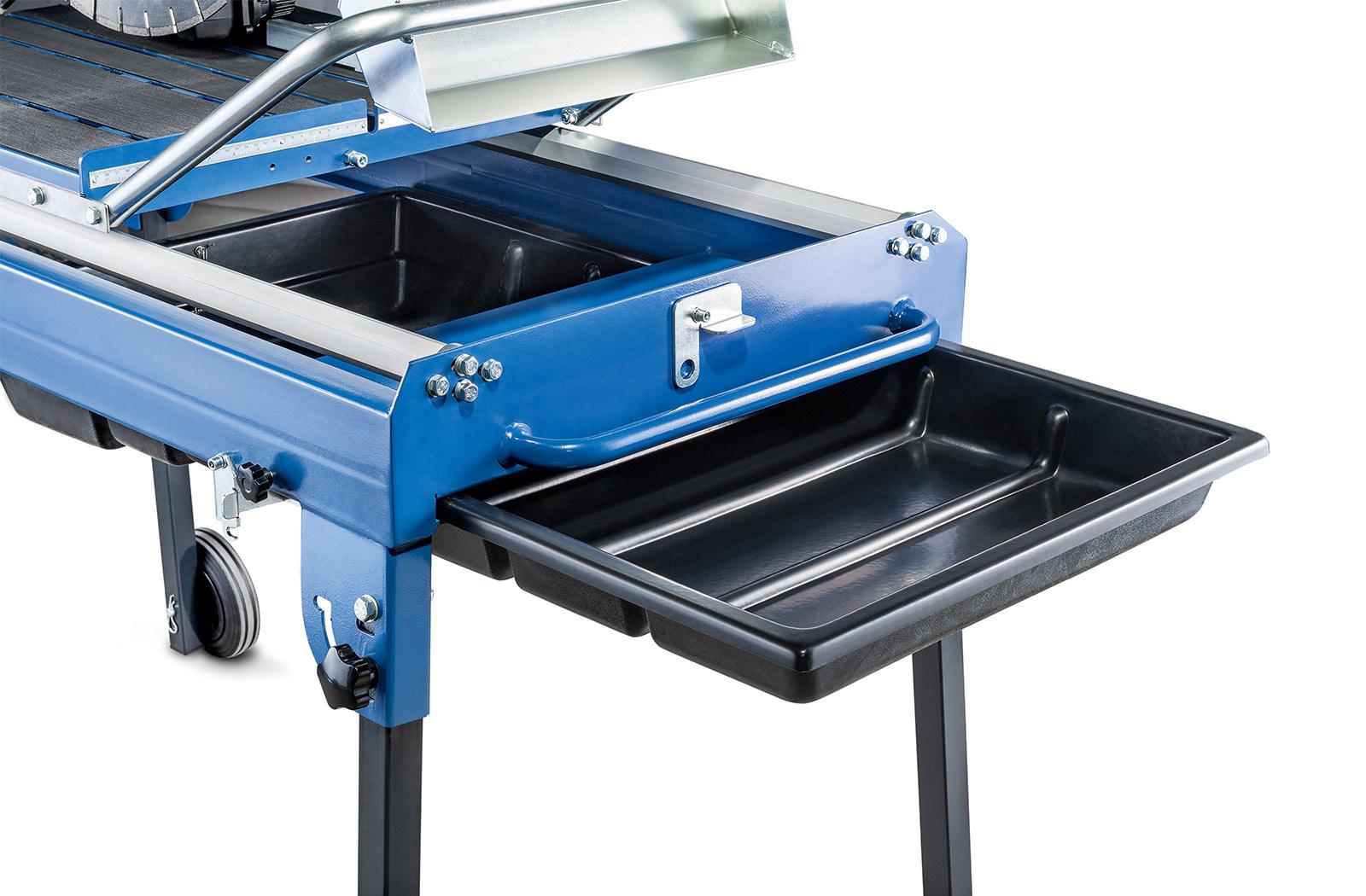

  • Rear-sloping removable water tub.
  • Rubberised saw table for non-slip cuts.
  • Exact, smooth running cutting table with adjustable angle stop.
  • Hinged saw blade guard for easier exchange of saw blades.
